“CONTROL YOUR MOTOR SPEED”
Our frequency inverters are used to control three phase asynchronous motors speed.
And they are appropriate for kinds of motors, like fans, conveyors, engraving machines.
The frequency inverters (VFD) are not for single phase 220V motor with capacitor. It is for three phase 380v motors
(or 220v motors by 220v VFD), which are asynchronous.
The frequency inverters (VFD) can not be used as power supply for common electrical equipments.
Product Introduction
Function advantages:
1. Forward, reverse, start and stop controlled by panel or external terminals.
2. Adjust speed by panel potentiometer or external potentiometer.

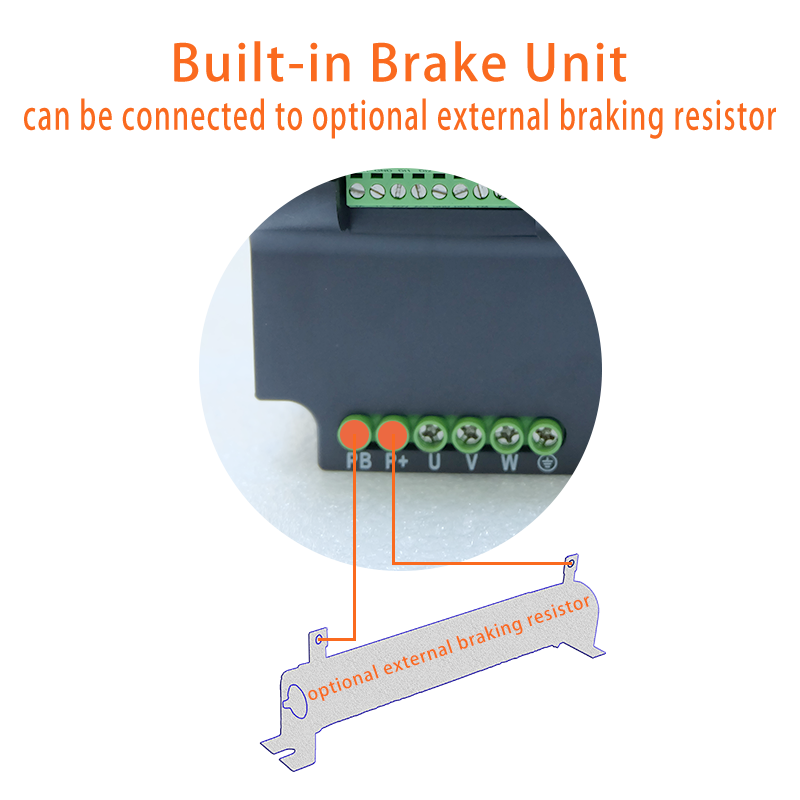

3. Built-in brake unit (for connecting brake resistance).
4. PID function (Constant pressure water supply).
5. Multi-stage run.
6. RS485 communication protocol by PLC.
7. Vector control, low frequency high torque.
8. Optional external control panel(not included in the package).
9. Overload protection.

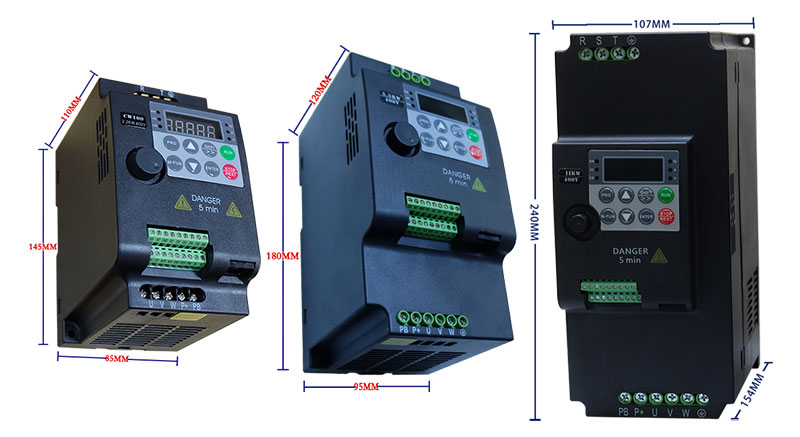

Sizes:
Specifications:
Rated output current: 16A
Input voltage: 1 phase 220v
Output voltage: 3 phase 220v
Installation dimension: 170x85mm
External dimension: 180x120x95mm
Mounting hole dimension: 61x81mm
Net Weight: 1.5kg
Optional external control panel(not included in the package):
Installation:
Note:before wiring, please read【the safety precautions】carefully. Pay attention to life safety and prevent the equipment from danger.
(for 220V type)
(for 380V type)

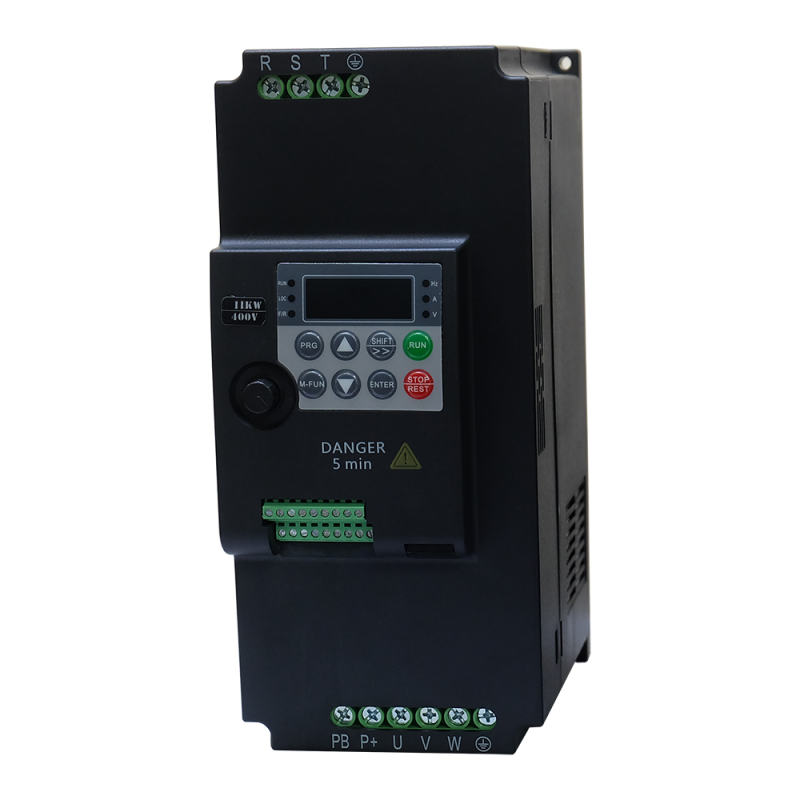

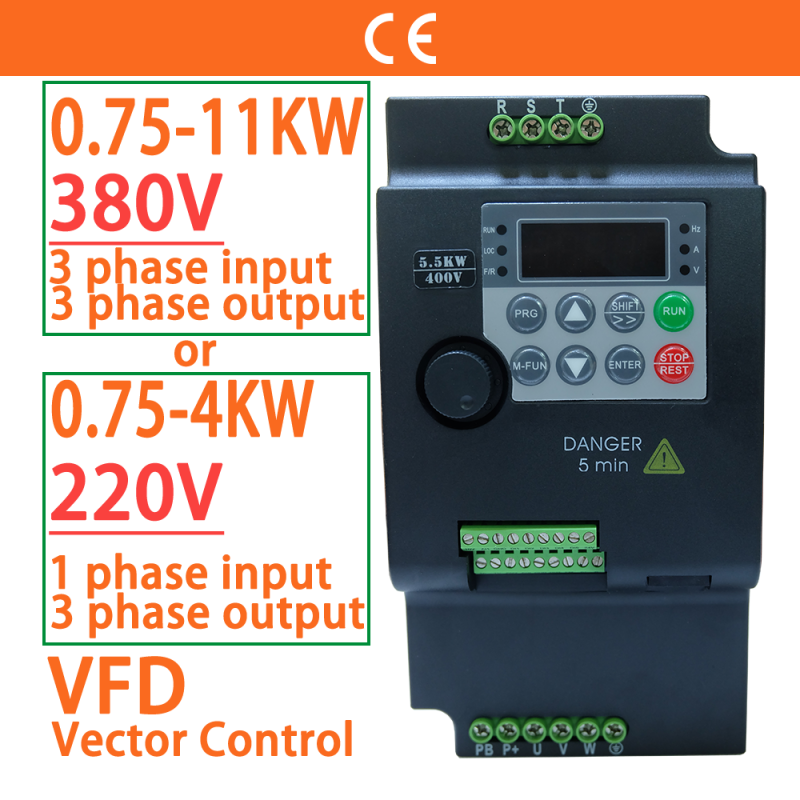

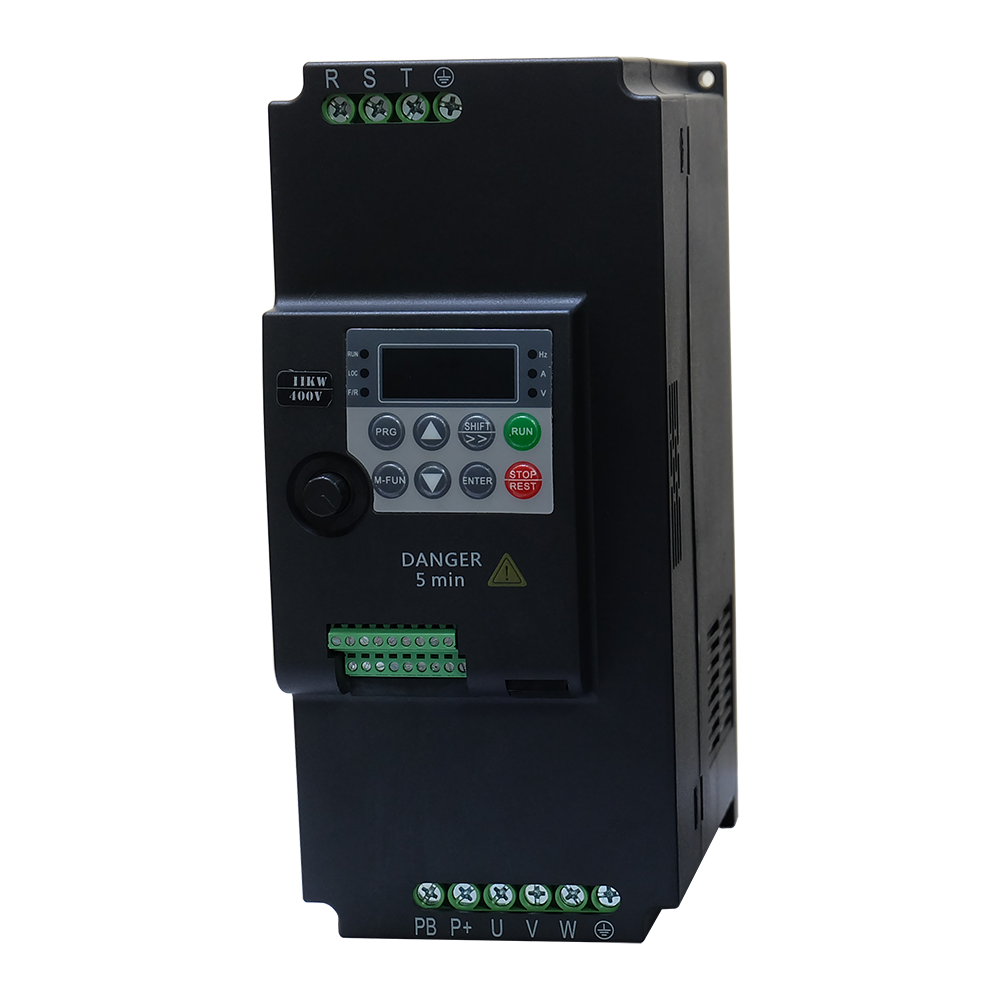

380V or 220V Economical VFD Variable Frequency Drive Converter Inverter 0.75/1.5/2.2/3.7/4/5.5/7.5/11 KW Motor Speed Controller
Certificate:
Delivery:
You should know the VAT or customs tariff policy of your own country before your purchase. If there is VAT or tariff, you need to pay them by yourself.
Return:
We will be responsible, if the products have quality problem.
Please check the product within 7 days since you receive it. And if the product has quality problem, you can return the product to us and we will return all the payment back to you. Please contact us about quality problem within 7 days after receiving goods, otherwise we can not accept the return.
Feedback:
Your positive (5 stars) feedback is highly appreciated. We guarantee the product quality and service. If you have any questions, please feel free to contact us.
Weight | 2500 g |
---|---|
Dimensions | 23 × 15 × 15.5 cm |
Power | |
Input Voltage | |
Output Voltage |
